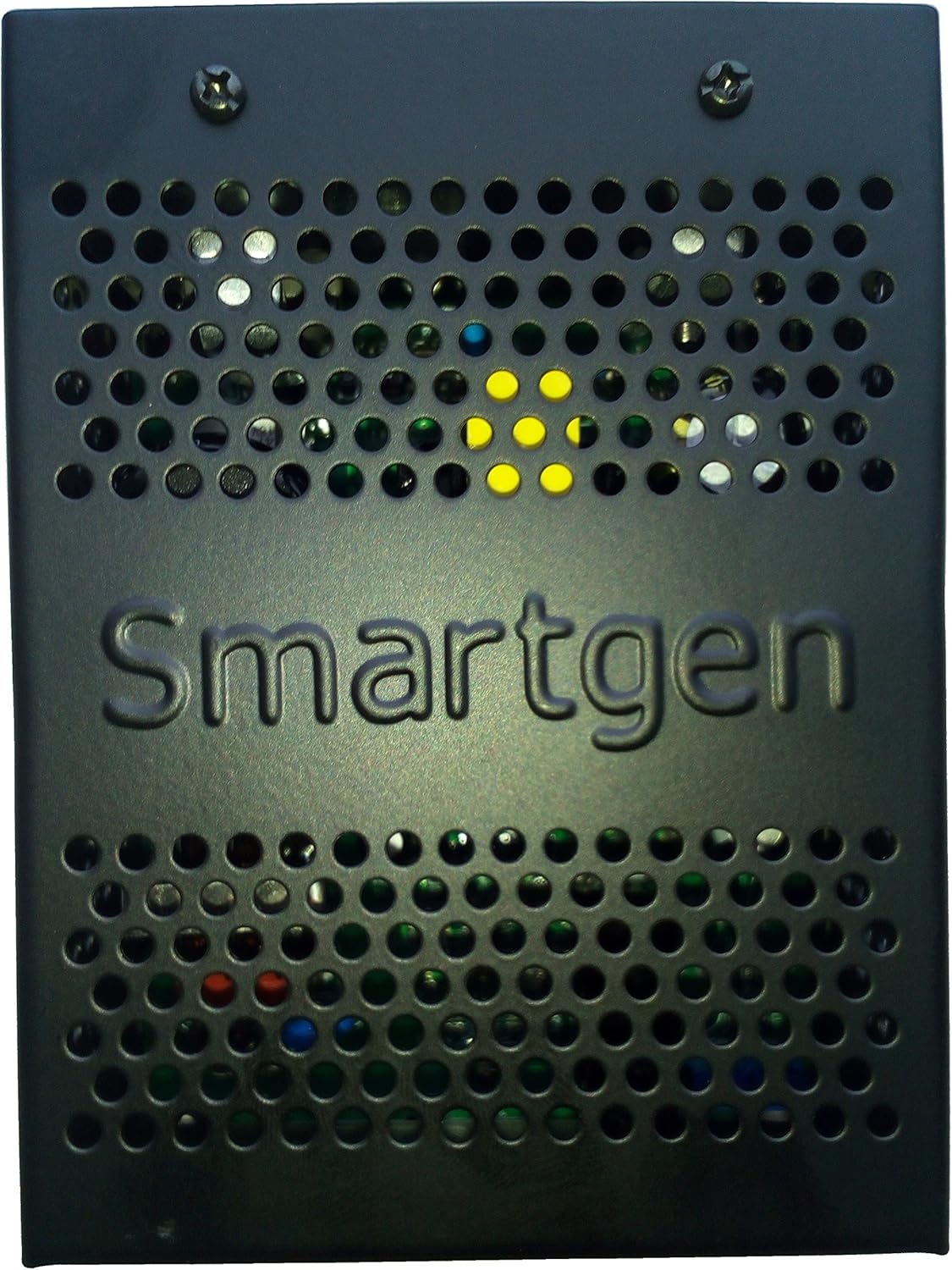

BAC06A-24V Generator Battery Charger (24V/3A, 90-280VAC 50/60Hz)

Description: BAC06 series switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A. PERFORMANCE AND CHARACTERISTICS: 1. Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency; 2. Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest; 3. With short circuit and reverse connection protection; 4. Charging voltage and current can be adjusted via potentiometer on the spot; 5. LED display: Power indication and charging indication; 6. Horizontal type for installation of BAV06A, easy to install; 7. Vertical type for installation of BAC06V, furthest decreased installation dimension. TECHNICAL SPECIFICATIONS: Battery Voltage12V/24V Max. Charging Current6A/3A Rated Input Voltage(100~240)V Max. Input Voltage Range(90~280)V AC Input Frequency(50/60)Hz Max. Input Current2A No-Load Power Consumption<3W Operating ModeTwo segments Maximum Efficiency83%/85% Operating Temp.(-30~+55)в„ѓ Storage Temp.(-40~+85)в„ѓ Net Weight(kg)0.65 Case Dimensions(mm)143*96*55

• Fixed output voltage, current limited lead acid battery charger
• May be used as a stabilized DC power supply
• Designed for permanent connection to generator starter batteries
• Overload and short circuit protections to avoid disconnection during cranking
• Isolated device case allowing a phase-to-phase 170-270V AC connection
