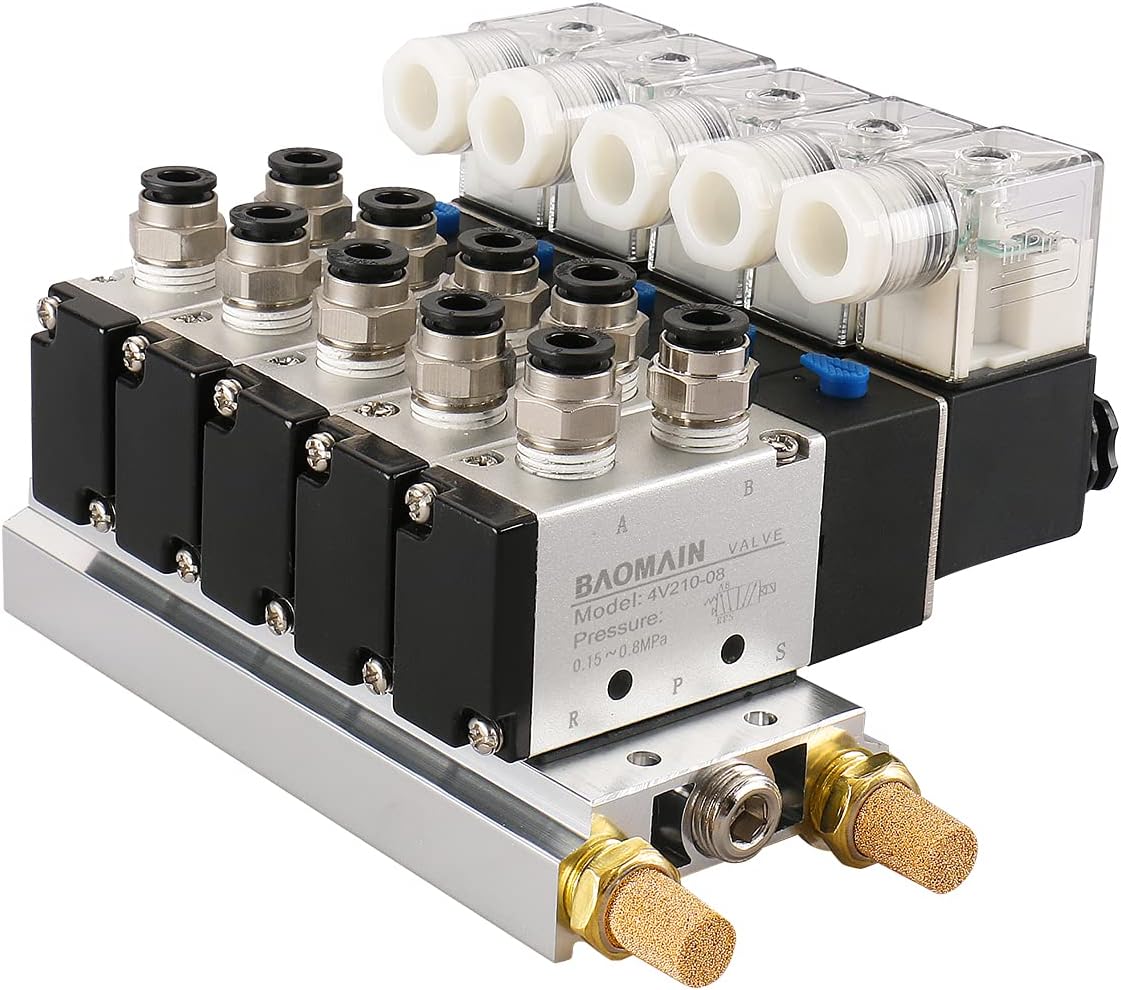

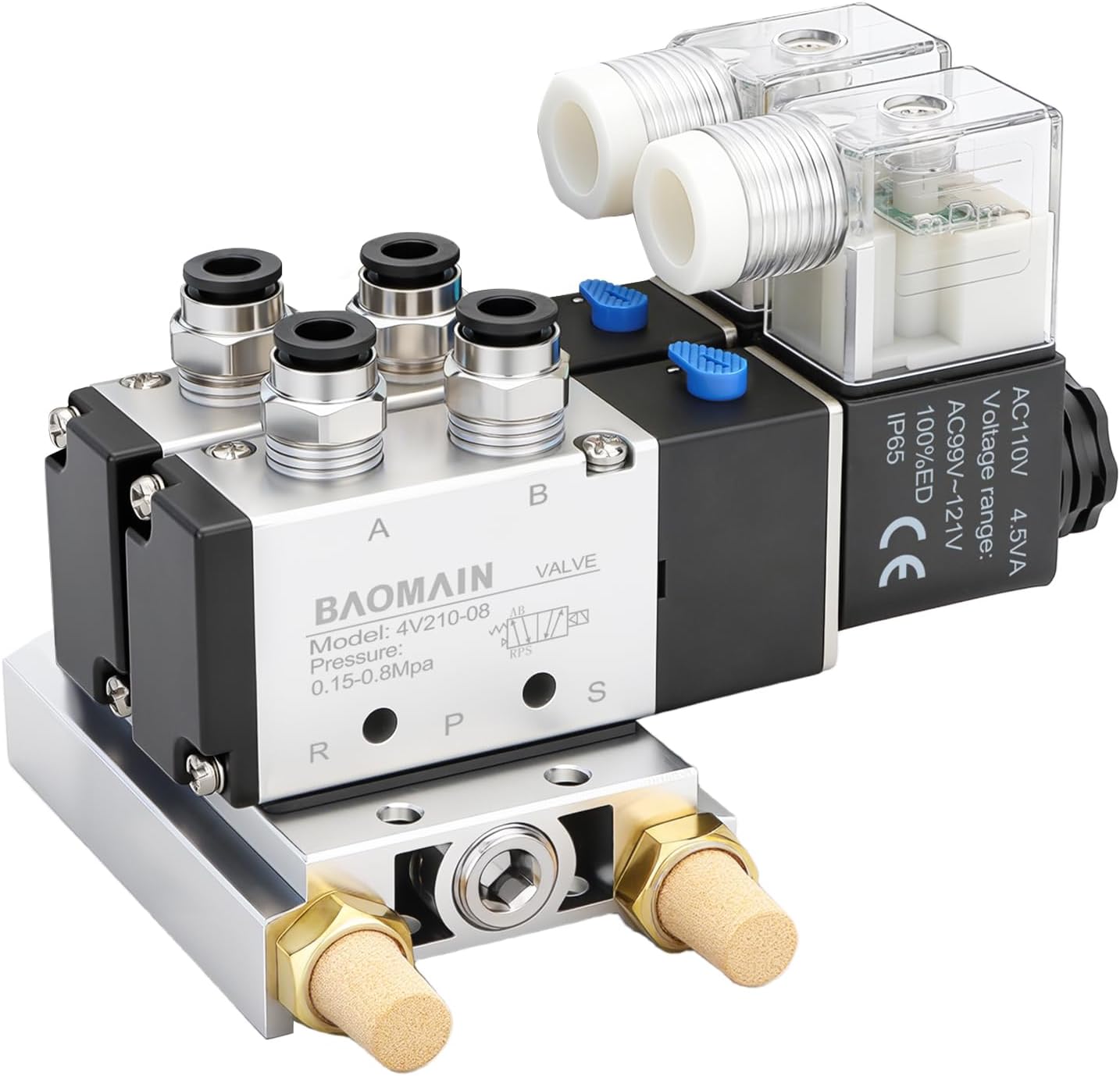

Baomain 4 Station Solenoid Valve Manifold, 110V AC 5 Way 2 Position Pneumatic Air Valve, Four Solenoid, 1/4" PT Port, Includes Manifold Base & Mufflers, 4V210-08
4.1 (24 items)
Limited Time SaleUS$26.15 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219305444 | Release Date | 2026/05/03 | List Price | US$17.44 | Model Number | 219305444 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【4-Station Integrated Manifold】 This product is an 4-station solenoid valve manifold that integrates 4 individual valves onto a single, sturdy base. This integrated design simplifies installation and saves space
- 【Quick-Connect Fittings】 Equipped with 8mm base ports and 6mm exhaust ports for simplified tool-free installation, reducing assembly time and effort
- 【2-Position, 5-Way Pneumatic Design】 Offers essential control for double-acting cylinders, making it a fundamental component for a wide range of automated machinery
- 【110V AC Operation with Stable Performance】 Features energy-efficient pure copper coils that reduce heat build-up. The wear-resistant construction ensures a long service life and reliable operation, even with frequent use
- 【Durable Aluminum Body】 Constructed from aluminum alloy for a lightweight yet strong valve body that resists corrosion
| UPC | 711811433467 |
|---|---|
| Size | 4-Station Valve Kit |
| Set Name | 4-Station Solenoid Valve Manifold |
| Brand Name | Baomain |
| Unit Count | 1 Count |
| Valve Type | solenoid valve |
| Item Weight | 2.2 Pounds |
| Thread Size | 1/4 inch |
| Thread Type | Push-to-Connect |
| Manufacturer | Baomain |
| Model Number | 4V210-08-4P-110VAC |
| Material Type | Aluminum |
| Connector Type | Push-to-Connect |
| Exterior Finish | Textile |
| Item Dimensions | 4.6 x 5.9 x 3.6 inches |
| Number of Ports | 5 |
| Maximum Pressure | 116 Pound per Square Inch |
| Number of Pieces | 1 |
| Specification Met | ASME B16.5, UL |
| Included Components | Solenoid Valve |
| Inlet Connection Size | 0.5 Inches |
| Inlet Connection Type | threaded |
| Outlet Connection Size | 0.24 Inches |
| Outlet Connection Type | PT |
| Manufacturer Part Number | 4V210-08-4C |
