Dividing Head Set 6" with 3-jaw Chuck, Semi Universal Milling Set with 6"/160mm Chuck+Tailstock+Dividing Plates, BS-1 Dividing Head for Milling Grinding Drilling Machine

Made of cast iron to ensure long-lasting useSuitable for metal and wood mold processingCan be used horizontally and vertically, very convenientEquipped with a variety of accessories to make machining easierAn indexing head is a machine tool accessory that is mounted on a milling machine to divide a workpiece into any number of parts. Using the indexing ring and vernier, locating pin and dial, and exchange gears, it divides the workpiece mounted between centers or on the chuck into arbitrary angles, and can divide the circumference into arbitrary portions, which assists the machine tool to machine various grooves, spur gears, helical spur gears, helical cams, and so on, using various shapes of cutting tools. Product SpecificationsChuck Diameter: 6.3"/160mmClamping Range: 1.6“/4mm - 5.7”/145mmSpindle Bore: 1.6"/40Center Height: 4.9"/125mmSpindle Bore Taper: Morse No.5 Weight: 115 lbs/52kgPackage Contents1 x Indexing Head + all accessoriesNote: The size is measured manually, there will be error, please refer to the actual size.Due to the different screen display, there is a certain color difference, please prevail in kind.If you do not understand or have any questions about this product, please feel free to contact us. We will reply within 24 hours, we are committed to customer satisfaction.

• 6-inch Dividing Head: Our φ6'' / 160 mm dividing head is an ideal choice for small milling machines, enhancing your milling capabilities. It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces, suitable for curved surface machining, long-hole machining, and precision drilling.

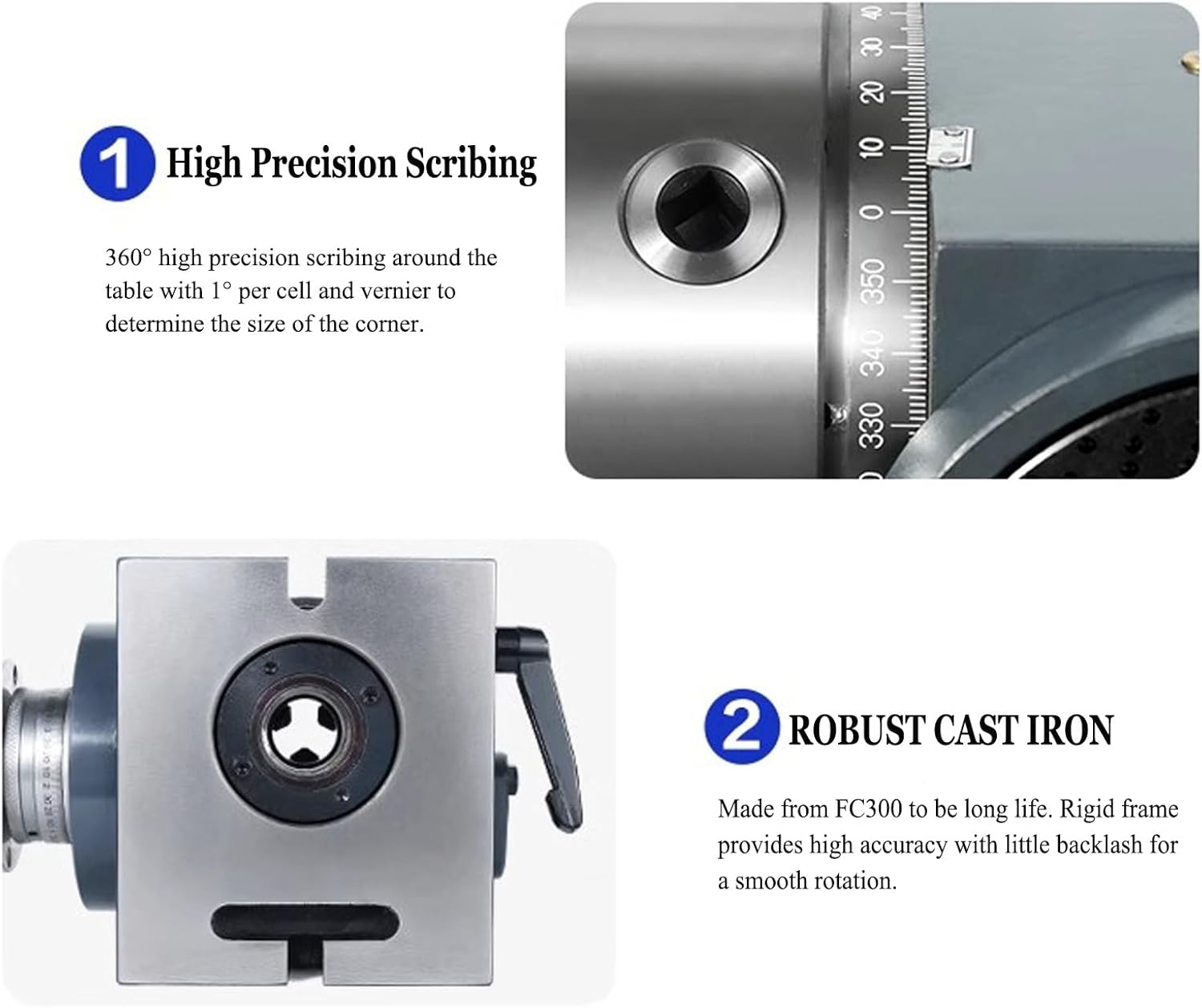

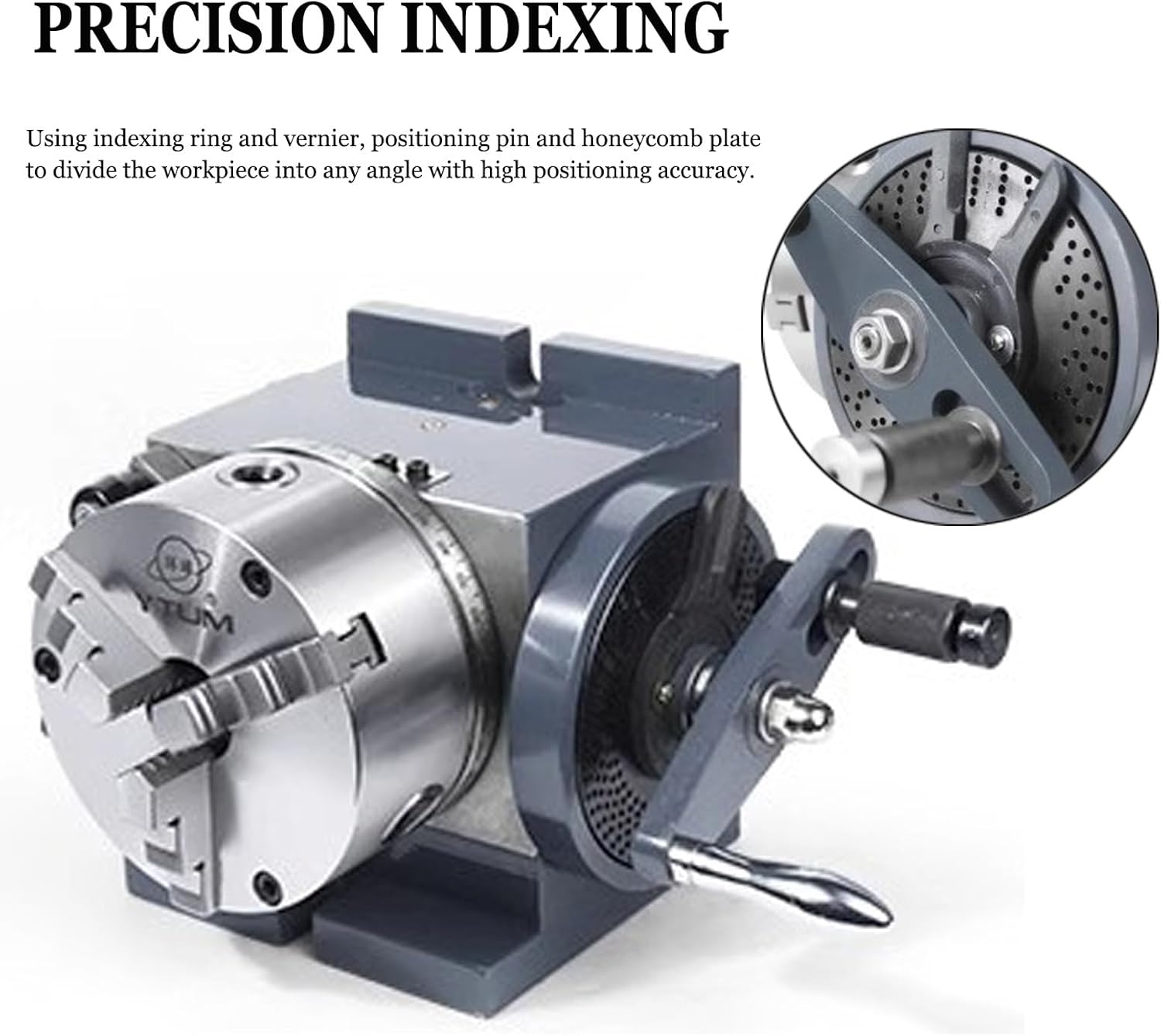

• Precise Indexing: The scale on the chuck is clear and accurate. By using the indexing scale ring, vernier, locating pin, and honeycomb plate, the workpiece can be divided into any angle.
• Sturdy and Durable: Made of FC30 cast iron, the workpiece is indexed around its own axis, suitable for milling machines or other special machinery for cutting and dividing.
• Horizontal or Vertical Use: The headstock of the milling machine dividing head supports horizontal or vertical use. Thus, you can handle materials of different sizes by changing its angle, which improves the convenience of operation.
• Complete Accessories: The package also includes a tailstock, which can provide strong support for the long metal bars you are machining, making the working state more stable. In addition, it includes two replaceable index plates with different numbers of holes, setting the precise distance between cuts.
