Manual Linear Stage Displacement Platform, 40x40mm Micrometer Adjustment, Sliding Cable for Production Machinery, Test Equipment, Optical Measurement

Product description Item Type: Linear StageMaterial: Aluminium AlloyFinish: Black AnodizedSliding Table: Approx. 40 x 40mm / 1.57 x 1.57inLoad : Horizontal 19.6N, vertical 9.8NMovement Accuracy:Straightness: 3μmParallelism: 20μmVertical Swing: 25 secLeft and Right Swing: 15 secAllowable Moment Load:Swing Up and Down: 2.7N mSwing Left and Right: 2.2N mSide Scrolling: 2.0N mMoment Stiffness:Up and Down Swing: 0.38 sec/N cmSwing Left and Right: 0.42 sec/N cmSide Roll: 0.28 sec/N cmPackage List：1 x Linear StageNote:Pay attention to the correct operation and maintain the sliding table in time. Manufacturer Contact Information 1

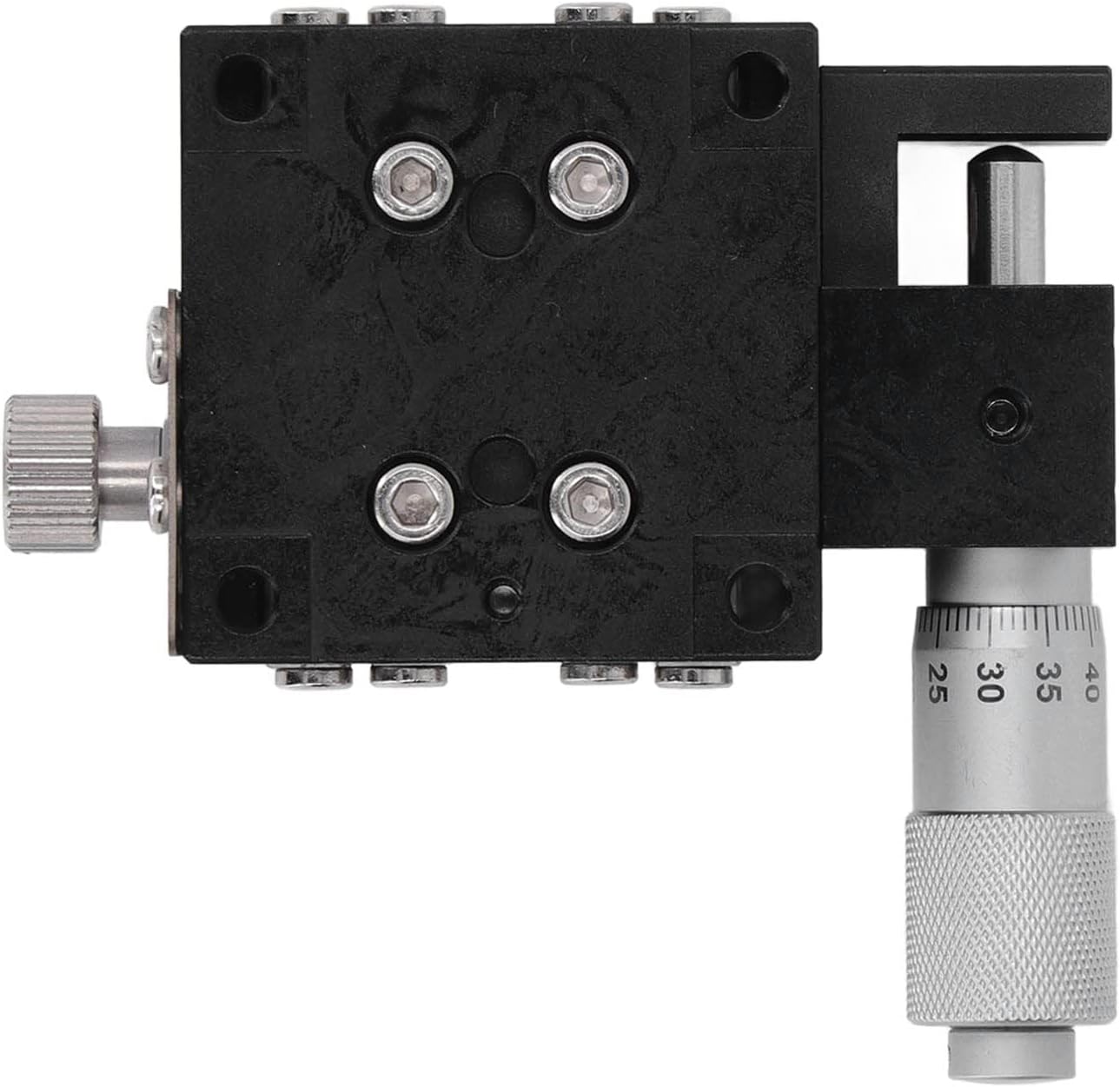

• Precise Micrometer Adjustment: This manual linear stage displacement platform features a fine-tuned micrometer for accurate X-axis positioning, enabling reliable control during delicate optical measurements or precision alignment tasks in lab and industrial settings.
• Sturdy Aluminum Alloy Build: Constructed from high-quality aluminum alloy with a black anodized finish, this sliding stage offers excellent strength and long-term durability while resisting wear and corrosion in demanding environments.

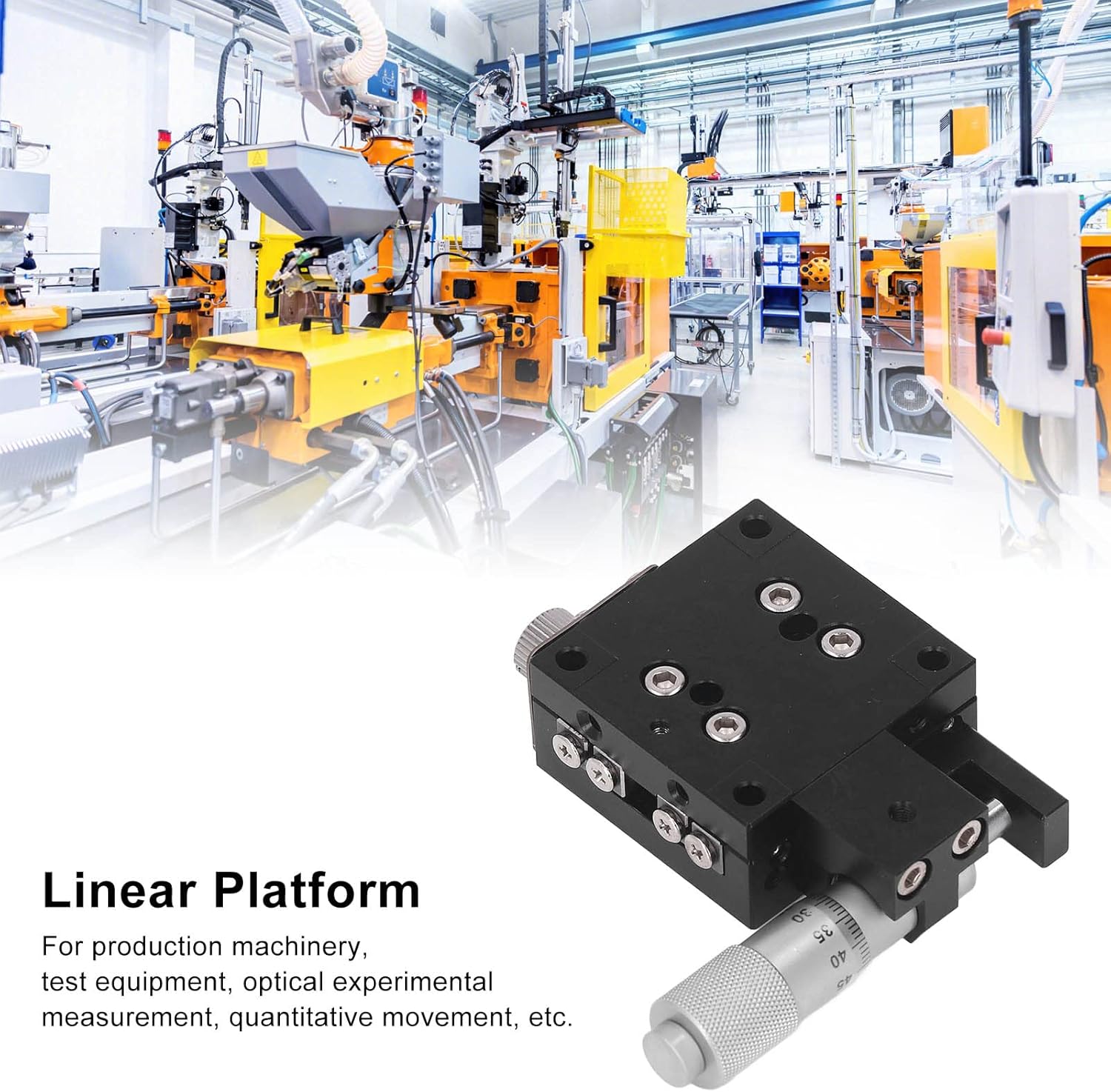

• Wide Application Range: The manual linear stage is ideal for production machinery, test equipment, optical experimental setups, and any scenario requiring smooth, repeatable linear motion with manual control and high positional accuracy.
• Compact and Space-Saving Design: With a 40x40mm platform size, this linear platform delivers a stable work surface without taking up excessive space, making it perfect for benchtop use or integration into tight mechanical or optical systems.
• Easy Setup and Low Maintenance: Lightweight and simple to install, this displacement platform requires minimal maintenance, ensuring quick deployment and consistent performance with reduced downtime in both professional and educational labs.
