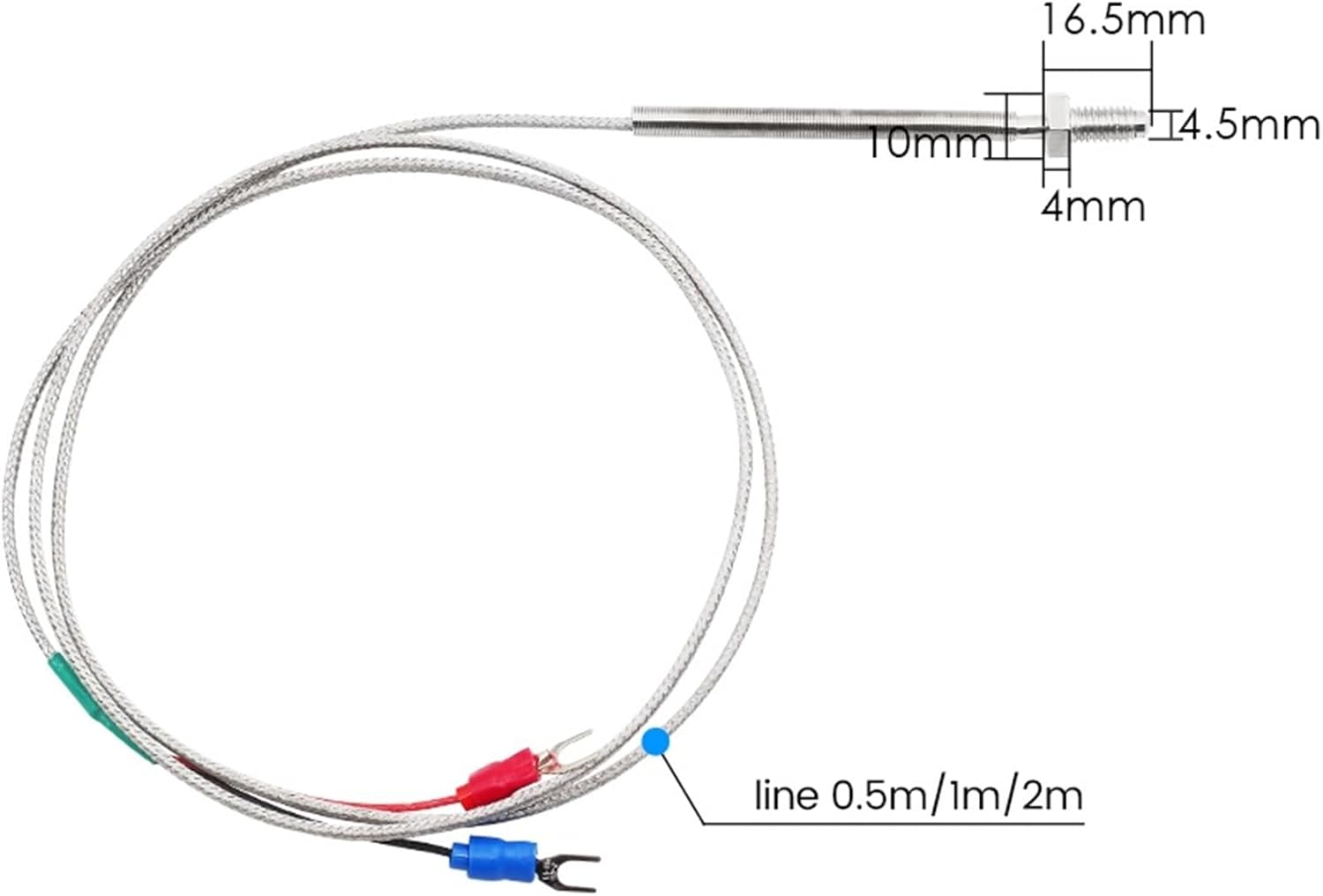

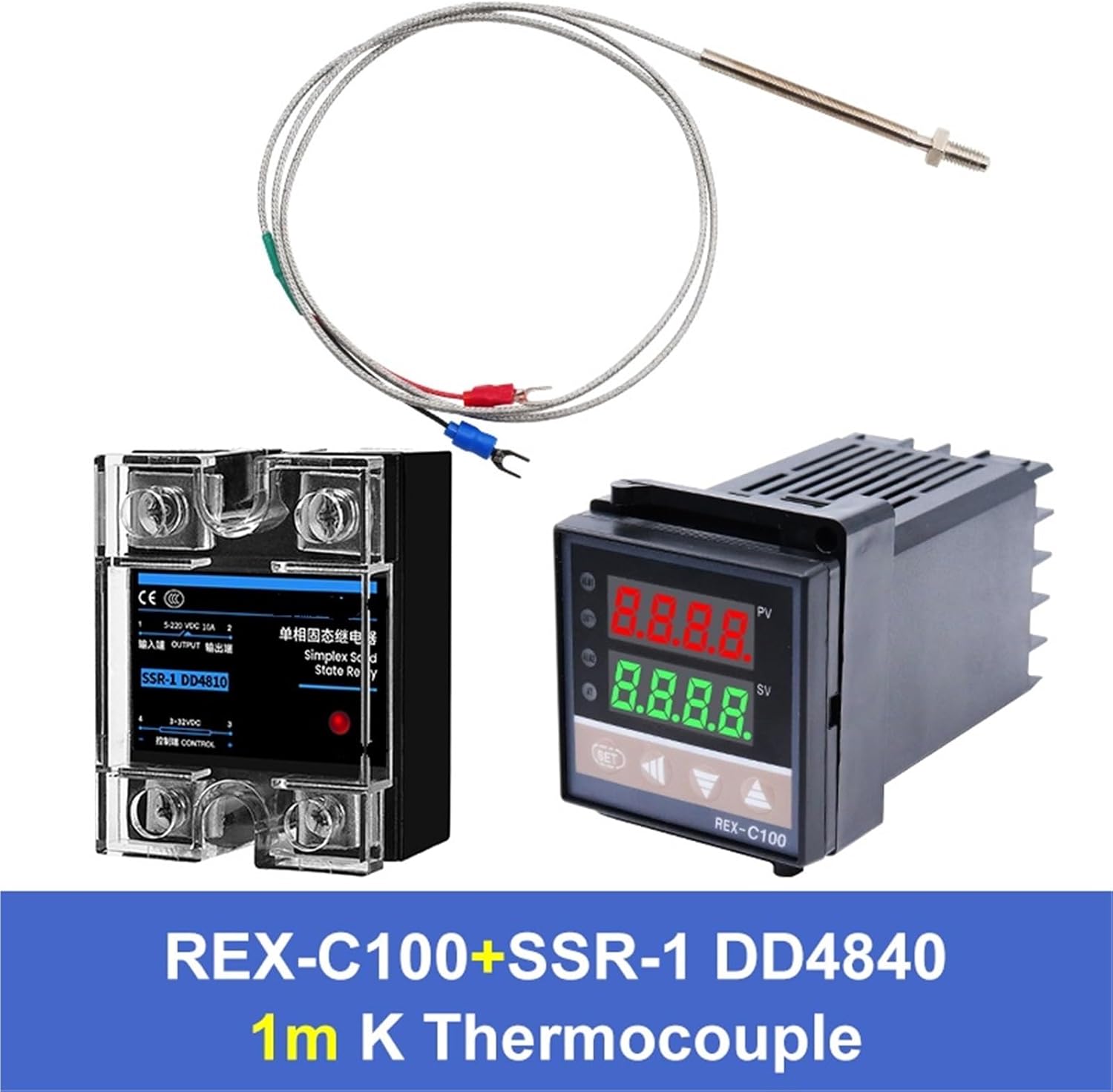

REX C100 Thermostat PID Regulator Digital Temperature Controller 0-400℃+ 40A DC-DC SSR Relay+ K Thermocouple M6 1m+ Heatsink
4.5 (78 items)
Limited Time SaleUS$29.32 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211145908 | Release Date | 2026/04/04 | List Price | US$19.54 | Model Number | 211145908 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
REX C100 Thermostat PID Regulator Digital Temperature Controller 0-400+ 40A DC-DC SSR Relay+ K Thermocouple M6 1m+ HeatsinkProduct Parameter:ModelnumberExternaldimensionsPerforationdimensionsOutputtypeInputtypeREX-C10048x4845 x45mmSSRThermocoupleREX-C40048x9645x92mmSSRThermocoupleREX-C41096*48REX-C70072x7268x68mmSSRThermocoupleREX-C90096x9692x92 mmSSRThermocoupleModel numberREX-C seriesAccuracy±0.5% of full scaleSupply voltage85-265Vac, 50/60 HzInput types-ThermocoupleK,J,E, Default K 0-400Output typeSSRPower consumptionLess than 10 VAControl methodPID Control (with auto-tuning) or Self-tuning, or ON/OFFIndication method8-segment 4-digital display and LED indicationSampling period0.5sElectromagnetic compatibilityIEC61000-4-4 (Electrical fast transient burst), 4KV/5KHz; IEC61000-4-5 (Surge), 4kvIsolation voltage>=2300v among the terminal of power, relay contact and signal; >=600v between two isolated weak signal terminalTemperature Mesurement Scope0 to 999 , default factory setting K02 input - 0 to 400 (adjustable)Operating temperature0 to 50 (32 to 122 )Operating humidity30-85% RH max, non-condensingAlias nameREX-C pid temperature controller, intelligent temperature controllerNote: Please carefully check your order before placing an order, we will ship according to the options you choose.Measure Type : KScrew : M6*1Cable Length : 1MType : KTheory : Temperature ControllerDisplay Type : DIGITALModel Number : rex c100Display Size : 2.0 - 3.9 InchesOrigin : Mainland ChinaMax Measuring Temperature : 120°C & AboveStyle : EmbeddedUsage : IndustrialSSR Feature1 : 40A MaxSSR Feature2 : DC controlled DCThermocouple wire length : 0.5m/1m/2mThermocouple Feature1 : K typeThermocouple Feature2 : M6 Screw TypeThermostat Feature1 : PID RegulatorThermostat Feature2 : rex c100 controllerThermostat Feature3 : pid controller temperatureThermostat Feature4 : rex c100 thermostatApplication2 : DC equipment
- VVCPVDXCI REX C100 Thermostat PID Regulator Digital Temperature Controller 0-400℃+ 40A DC-DC SSR Relay+ K Thermocouple M6 1m+ Heatsink
| Color | 1m no heatsink |
|---|---|
| Brand Name | VVCPVDXCI |
| Item Length | 1 Inches |
| Display Type | Analog |
| Manufacturer | VVCPVDXCI |
| Material Type | Plastic |
| Included Components | Battery |
