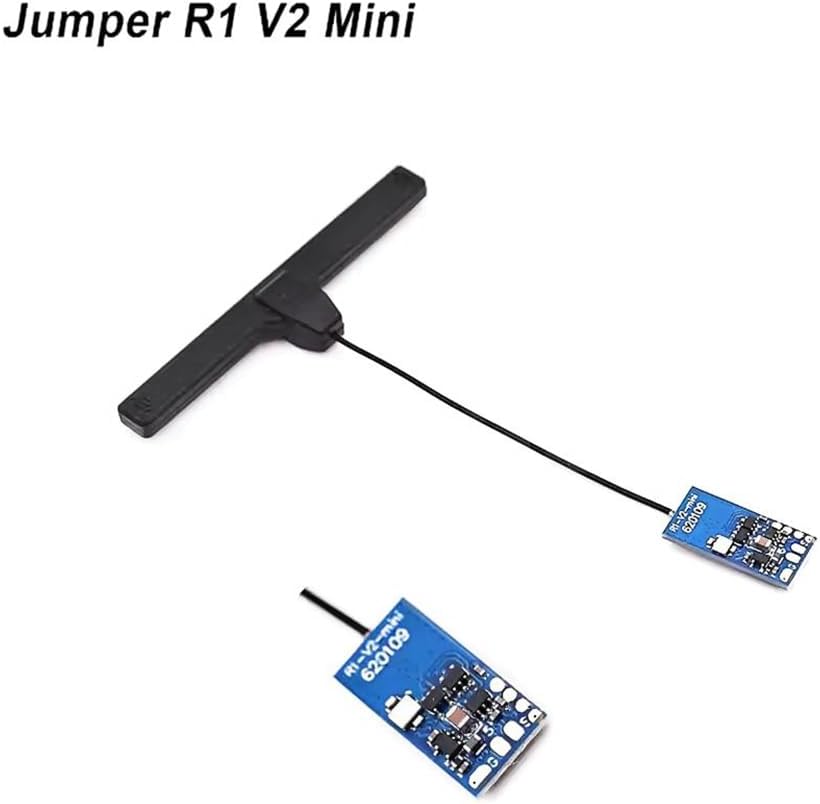

SPARKHOBBY Jumper R1 V2 Mini 2.4GHz 16CH Receiver Compatible with FrSky D16 XM+ RXSR SBUS Jumper T-Lite T18 T16 T12 T8SG Drone Accessories (1PC R1 V2 Mini)

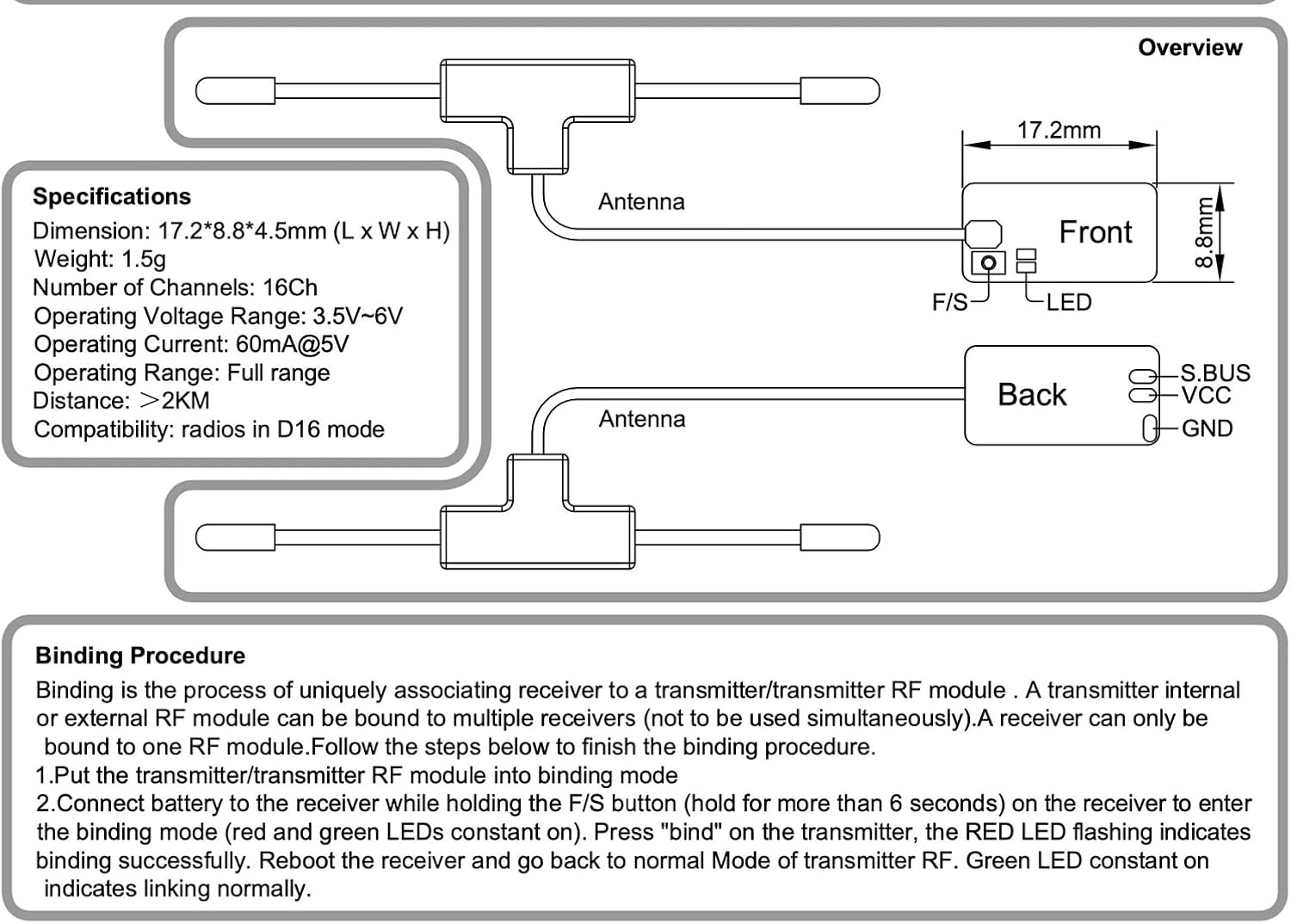

Item: R1 V2 Mini 2.4GHz 16CH Receiver Parameters: Item Name: R1 V2 Mini RC Receiver Model: R1 V2 Mini Dimension: 17.2*8.8*4.5mm (L x W x H) Weight: 1.5g Number of Channels: 16Ch Operating Voltage Range: 3.5V-6V Operating Current: 60mA@5V Operating Range: Full range Distance: >2KM Compatibility: radios in D16 mode Features: A receiver can only be bound to one RF module.Follow the steps below to finish the binding procedure. - Put the transmitter/transmitter RF module into binding mode - Connect battery to the receiver while holding the F/S button (hold for more than 6 seconds) on the receiver to enter the binding mode (red and green LEDs constant on). Press "bind" on the transmitter, the RED LED flashing indicates binding successfully. Reboot the receiver and go back to normal Mode of transmitter RF. Green LED constant on indicates linking normally. Package Included: 1 x R1 V2 Mini RC Receiver 1 x Manual

• Binding is the process of uniquely associating receiver to a transmitter/transmitter RF module .
• A transmitter internal or external RF module can be bound to multiple receivers (not to be used simultaneously).A receiver can only be bound to one RF module
• Compatibility: radios in D16 mode
• Low latency and high refresh rate, very suitable for FPV racing and remote FPV cruising, while being ultra light and small, very suitable for Tinywhoop.
• With this small receiver, you can reach a wide range, even comparable to crossfire, tracer bullets, and ghosts
