X AUTOHAUX Trim and Tilt Switch Assembly 6R3-82563-00-00 for Yamaha Outboard 2 Stroke 115HP-225HP 3 Pin Tilt Control Switch 6R3-82563-01-00 for Yamaha Outboard Trim Tilt Switch Assy
4.9 (79 items)
Limited Time SaleUntil the end
21
58
50
US$15.11 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$10.08
Product details
| Management number | 217651169 | Release Date | 2026/04/19 | List Price | US$10.08 | Model Number | 217651169 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

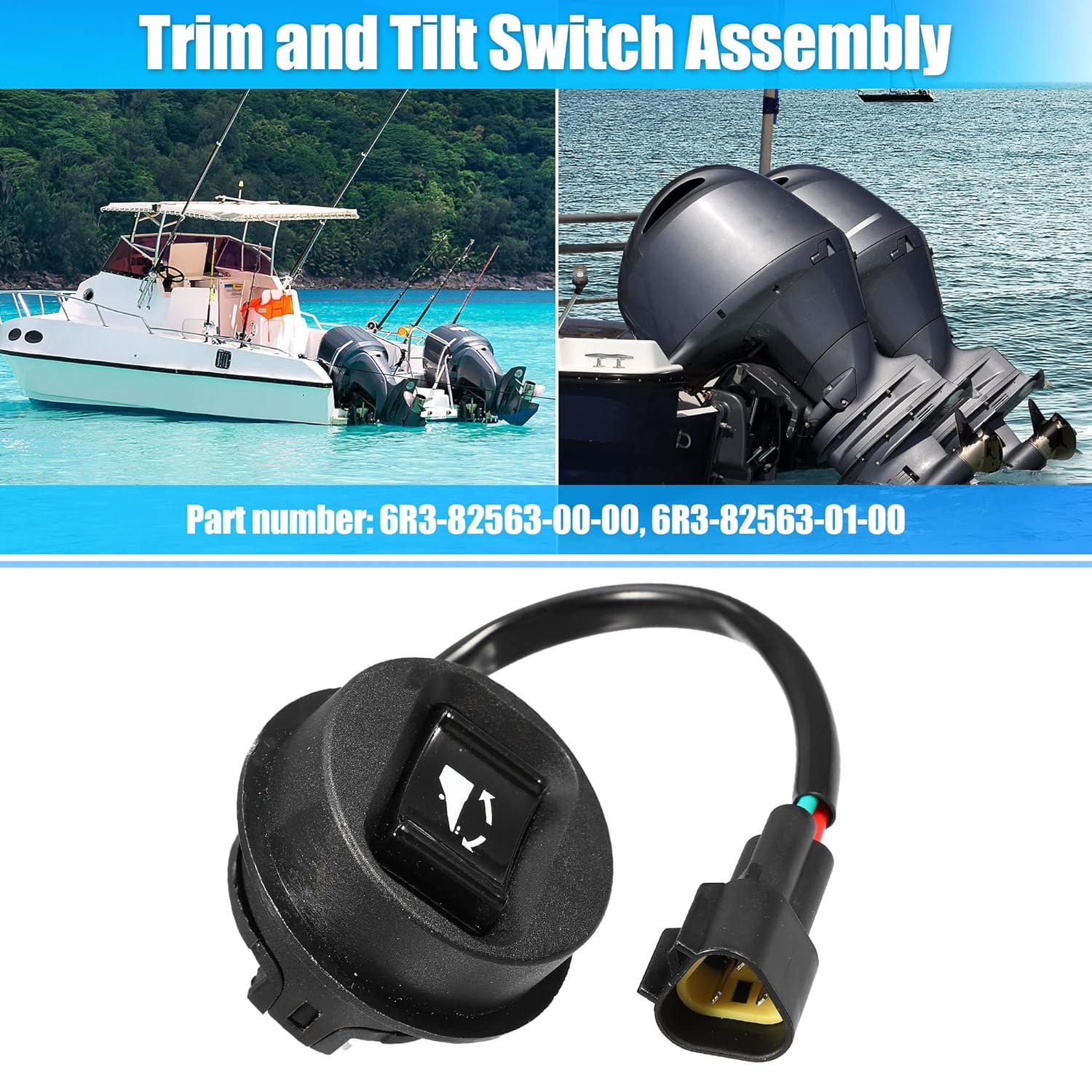

- [Part Number of Trim and Tilt Switch Assembly] 6R3-82563-00-00, 6R3-82563-01-00.
- [Fitment of 2 Stroke Trim and Tilt Switch] For Yamaha Outboard 115HP 130HP 150HP 175HP 200HP 225HP Some select model. For Yamaha Outboard 115, 130, 150, 175, 200, 225, S115, S130, S150, S175, S200, SX150, SX200, V150, VX150, VZ150, VZ175, VZ200, Z150, Z175, Z200 . Please check boat model, year, trim, engine and part number before purchase.

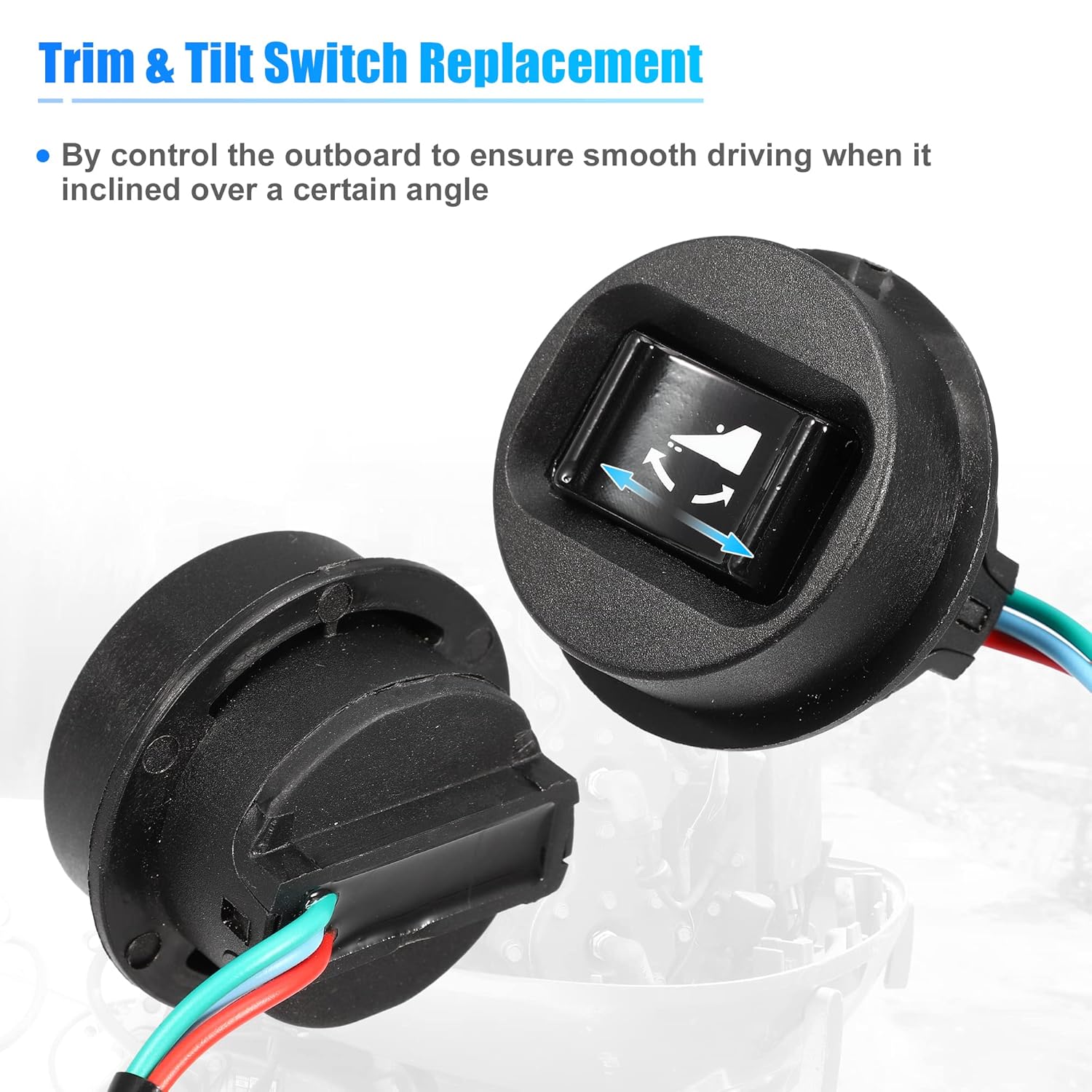

- [Function of 3 Pin Tilt Control Switch] Replace the broken or damaged tilt control switch in time for smooth driving, by control the outboard to ensure smooth driving when it inclined over a certain angle.

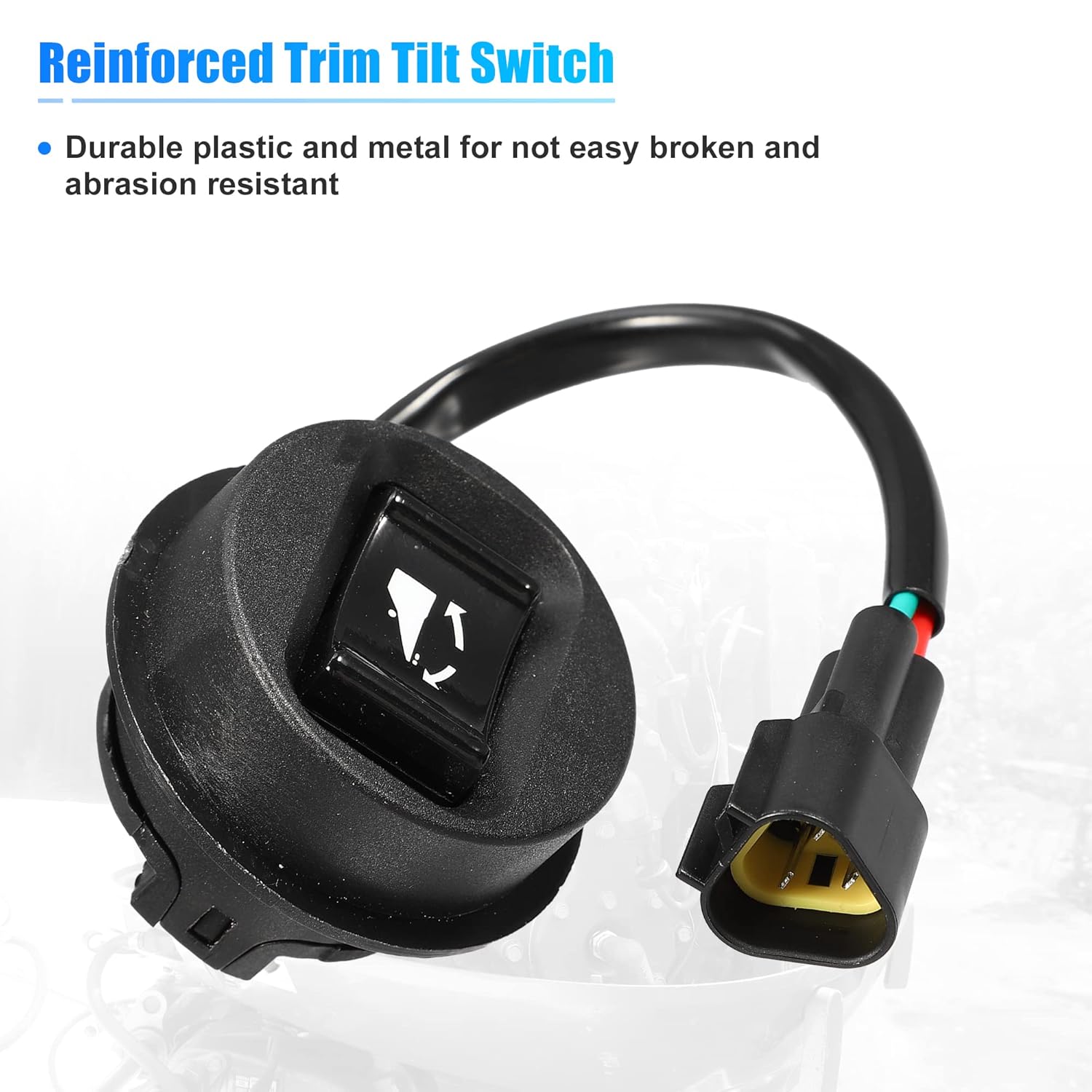

- [Features of Trim Tilt Switch Assy] Precise 3 pin port for easily installation, note that Green to negative pole, while Red & Blue to positive pole. Durable plastic and metal material for not easy broken, abrasion resistant.
- [Package] Include 1x Trim and Tilt Switch. Please search video online to get professional replace method.
| Color | Black |
|---|---|
| Model | a22121200ux0018 |
| Terminal | Pin |
| Brand Name | X AUTOHAUX |
| Unit Count | 1.0 Count |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | X AUTOHAUX |
| Actuator Type | Push Button |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 12 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 5.5 x 4.7 x 2.2 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 12 Volts |
| Specification Met | CCC |
| Included Components | Power Window Switch |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 105 Degrees Celsius |
| International Protection Rating | IP40 |
